MPLS Troubleshooting Lab One

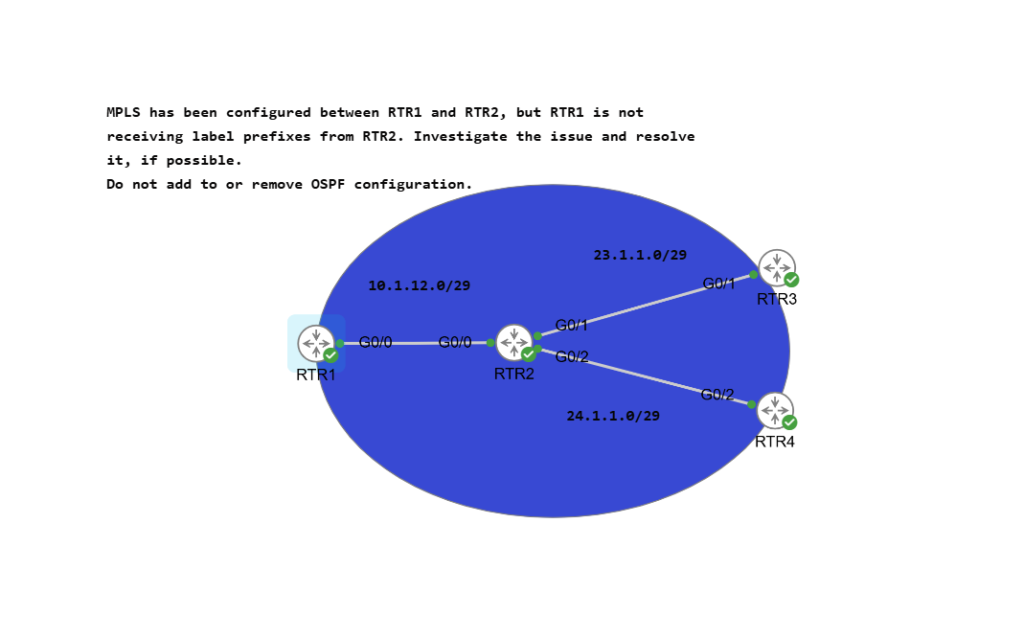

MPLS has been configured between RTR1 and RTR2, but RTR1 is not receiving label prefixes from RTR2. Investigate the issue and resolve it, if possible. Do not add to or remove OSPF configuration.

Uploaded: February 18, 2026

CML Download (Compatible with Free version)

SHA-256: 2b68fa179f0c9fb77740ce2d54b33e995a3af1b4131bb187591cf3519d18490f

MPLS_Troubleshooting_Lab_One(CML)Download

EVE-NG Download (Compatible with Community version)

SHA-256: f2a05cf86db4fe7b9d01430161b62241e1432b472656d2576405a236e5ddcd67

MPLS-Troubleshooting-Lab-One(EVE-NG)Download
